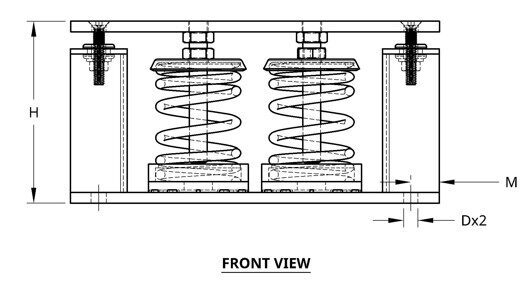

Technical front view drawing of a mechanical spring system.

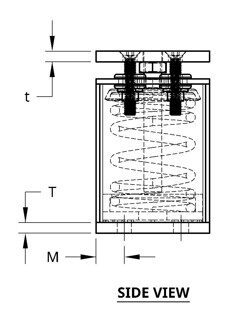

Technical diagram of a coil spring inside a cylindrical container with labeled dimensions.
Top view of a rectangular object with two centered circular holes.

VIBmount-SSD Isolator

Category:

Applications

  • Floor or roof mount
  • Equipment with fluctuating operating weight
  • Maximum capacity

Features

  • Channel housing with double steel coil spring
  • Integrated seismic and wind restraints
  • Elastomeric isolation pad
  • Easy installation
  • 1″ or 2″ deflection

View Pdf

Description

The VIBmount‐SSD isolator VIB‐ISO’s maximum capacity roof curb or floor‐mount isolator ideal for equipment with fluctuating operating weights. Designed to integrate with any roof curb or floor‐mounted piece of equipment, the VIBmount‐SSD isolator will aid to reduce the vibration from large mechanical and electrical equipment to the building structure through its assembled VIBmount‐SSD double spring capacity. The VIBmount‐SSD has integrated lateral and vertical restraints in order to account for seismic and wind loads. Additionally, the channel design of the VIBmount‐SSD housing accounts for additional seismic load capacity.

VIB‐ISO will engineer each VIBmount‐SSD isolator to match your specified unit and meet any additional customer requirements. The VIBmount‐SSD isolator is available in either 1” or 2” deflection and is shipped fully assembled with the springs and restraints installed at VIB‐ISO in order to reduce onsite labor requirements. The springs are made of structural steel and sit on an elastomeric mount. The housing is made entirely of structural steel. On site, the VIBmount‐SSD design allows for quick assembly requiring only basic tools for installation.
