VIBmount-HL Isolator
Applications
- Large scale floor or roof mount
- Economical design
- Large capacity
Features
- Integrated seismic and wind restraints
- Steel coil and housing
- Neoprene rubber snubbing grommet
- Available with bolted base plate
- Easy installation
- 2″ deflection
Description
The VIBmount‐HL isolator is VIB‐ISO’s versatile roof curb and floor‐mount large isolator. Designed to integrate with any roof curb or floor‐mounted piece of equipment requiring a higher load, the VIBmount‐HL isolator will aid to reduce the vibration from large mechanical and electrical equipment to the building structure. The VIBmount‐HL has integrated lateral and vertical restraints in order to account for seismic and wind loads.

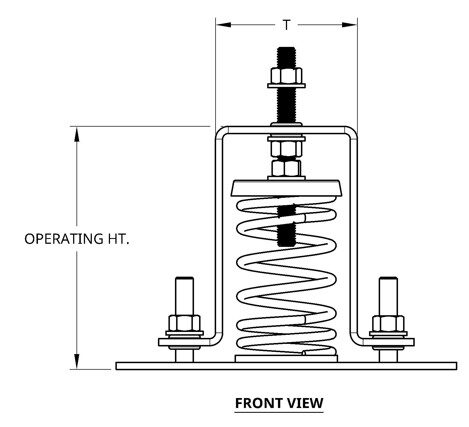

VIB‐ISO will engineer each VIBmount‐HL isolator to match your specified unit and meet any additional customer requirements. The VIBmount‐HL isolator is only available in 2” deflection and is shipped fully assembled in order to reduce onsite labor requirements. The springs are made of structural steel and sit on an elastomeric mount. The housing is made entirely of structural steel and is available for fully‐welded or fully‐bolted applications.
