VIBhanger-PH System
Applications
- Suspended inline pumps
- Additional support
- Integrated with VIBhanger products
Features
- 1/4″ steel
- Customizable layout and design
- Built-in all-thread mounting hole
- Pre-drilled slotted alignment with
both 125/150# and 250/300#
flanges - Efficient on-site installation
- Quick-lead time
Description

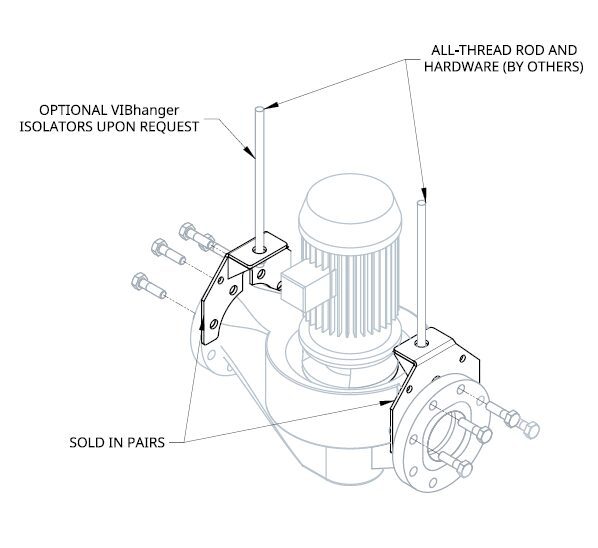

The VIBhanger-PH System is designed specifically to suspend and support inline pumps directly from structural ceilings or decking while suppressing mechanical vibration and structure-borne noise before it travels through the building. This system will help protect connected piping configurations from structural stress caused by operational pump torque, movement, and thermal expansion.

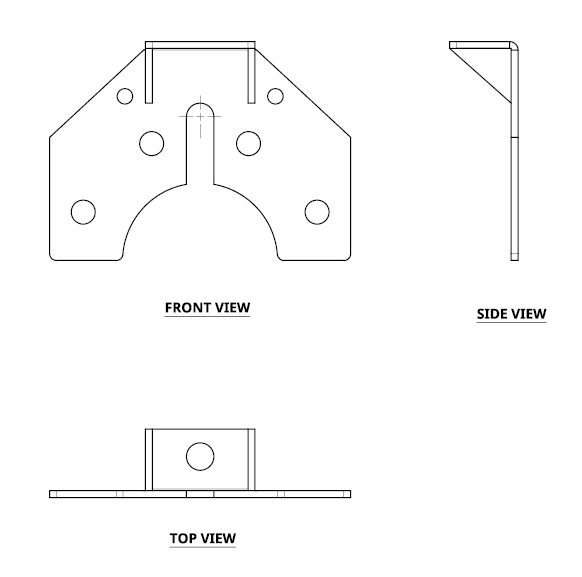

The VIBhanger-PH System features structural steel components with the ability to customize the layout to fit any project configuration. Each VIB-ISO configuration will ensure correct elevation and rigid alignment of both hot water and chilled water circulation pumps. Featuring multi-pattern bolt holes, the VIBhanger-PH accommodates standard 125/150# as well as heavy-duty 250/300# flange configurations.
