VIBrail-AT System
Applications
- When fully adjustable spring assembly is specified
- Tall option to allow for a roof-mounted unit with a deeper base rail
- Allows for further fine tuning in the field
- Vibration reduction of roof-mounted equipment
- Easy roof curb integration
- Standard or high capacity
Features
- Fully adjustable springs
- Efficient on-site assembly
- Integrated seismic and wind restraints
- Additional restraint stiffener
- Pre-loaded spring assembly
- High strength aluminum alloy
- Quick lead time
Description

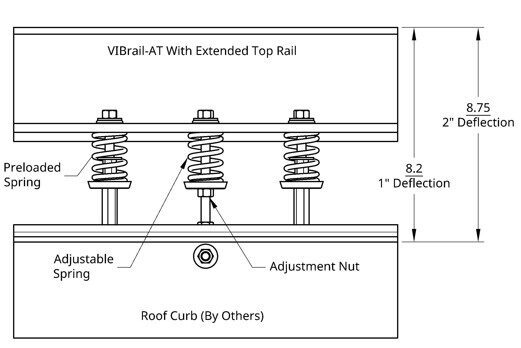

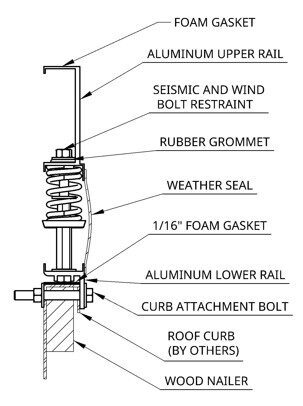

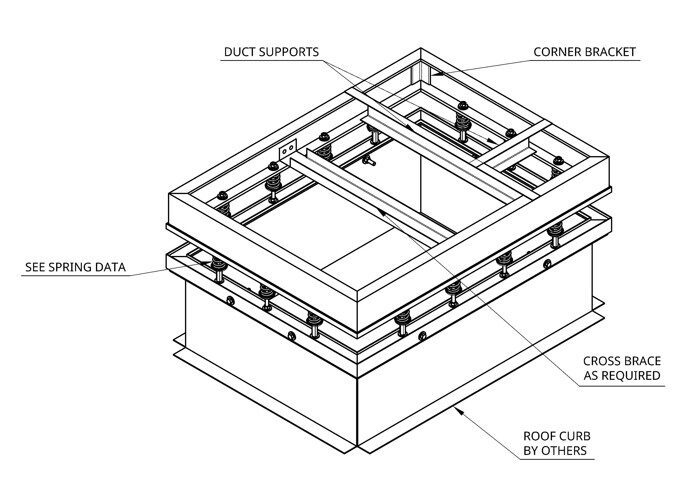

The VIBrail‐AT offers all of the attributes of VIB‐ISO’s isolation rail system, but with the option of both fully adjustable springs and a taller upper profile. When specified, the VIBrail‐AT is designed to reduce the vibration from roof mounted equipment through the flexibility to adjust individual springs while also allowing for roof top units with a larger base rail. The VIBrail‐AT also acts as a seismic and wind restraint to keep the unit attached to the roof curb. The VIBrail‐AT system is available in either 1” or 2” deflection and is shipped nearly fully assembled with the springs and restraints installed at VIB‐ISO in order to reduce onsite labor. The VIBrail‐AT design allows for quick assembly requiring only basic tools to install on site.
