VIBpad-WF System

Category:

Applications

  • Vibration reduction of roof-mounted equipment
  • Built-in vibration isolation
  • Critical areas
  • High load applications
  • Slab, grade and roof installation
  • Easy, on-site installation

Features

  • Anti-vibration pad
  • 70-durometer elastomeric material
  • Easy to re-configure
  • Can be stacked to increase natural frequency
  • Meets applicable testing requirements
  • Quick lead time

View Pdf

Description

VIB-ISO’s VIBpad-WF System is ideal for use in both critical and non-critical areas when higher mechanical loads require an efficient, cost-effective noise and vibration solution. It is designed to reduce the noise and vibration emitted from a piece of equipment using a 70-durometer, waterproof elastomeric rubber material.

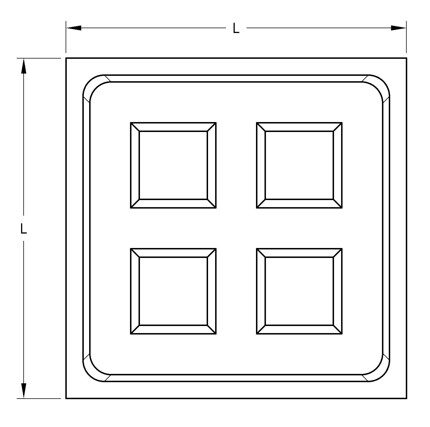

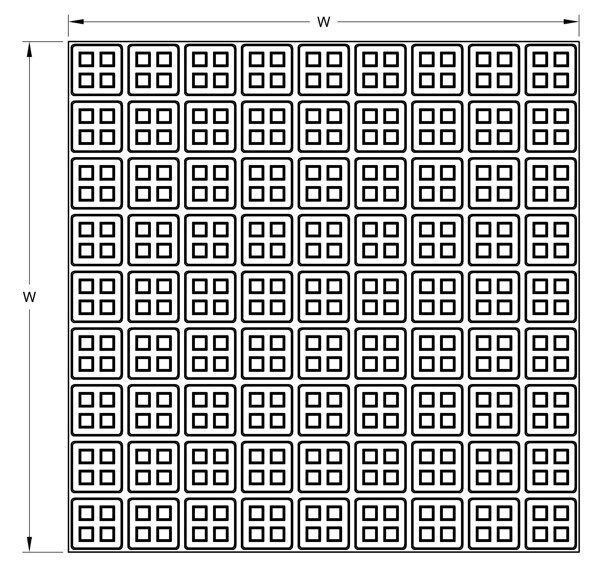

The VIBpad-WF System is manufactured as an 18″ x 18″ x 0.75″ square pad with 2″ x 2″ square grooves. These grooves allow for easy, on-site field modifications
using only a utility knife, making the VIBpad-WF customizable for any size and shape required.
